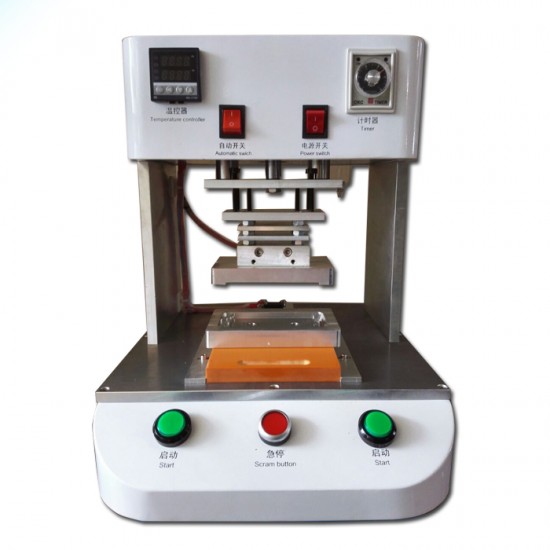

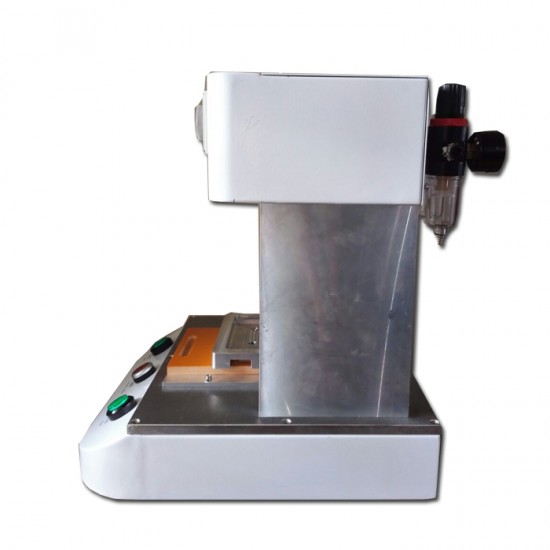

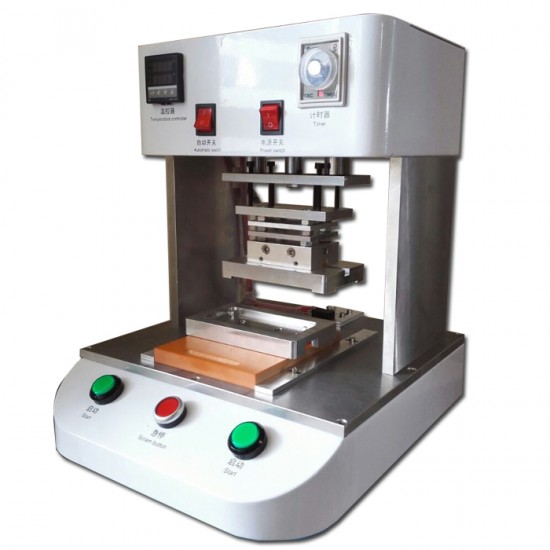

New Version Frame machine LCD refurbish For iphones with molds 4/4S 5/5S/5C 6 and 6+

  • Product Code: PFLCDR-027
  • Availability: In Stock
5 or more 10 or more 20 or more More than
$450.00 $435.00 $425.00


Pressure machine features:

1.This equipment is dedicated to pressing iPhone 4/4S 5/5S or iPhone 6 and iPhone 6 plus bracket and the LCD assembly

2.Set the temperature of 140 degrees for iPhone 4 and iPhone 5/5c/5s, Set the temperature of 170 degrees for iPhone 6 and iPhone 6 Plus, before pressing the pressing time to 7 seconds, then stent use better glue dispensing machine

3.Put the LCD assembly point good glue stent, gently knead (note the bracket and LCD assembly symmetrical direction), and then place the LCD assembly with a box under the machine mold in hot pressing

4. manual push mold, head down automatically, automatic rising six seconds after pressing, to pull out of the mould, pressing to finish!

Technical parameters:

The input voltage: AC220V 50/60 hz
Adjustable temperature control range: 0-399 degree
Adjustable time range: 0 to 10 s
Adjustable air pressure: 1.5-8 ㎏ / cm2 (configuration vacuum pump)
Size: 33*43*40cm

Weight: 14kg

Video Guie
